Diesel Generator Car Engine Parts Vdo Water Temperature Sensor

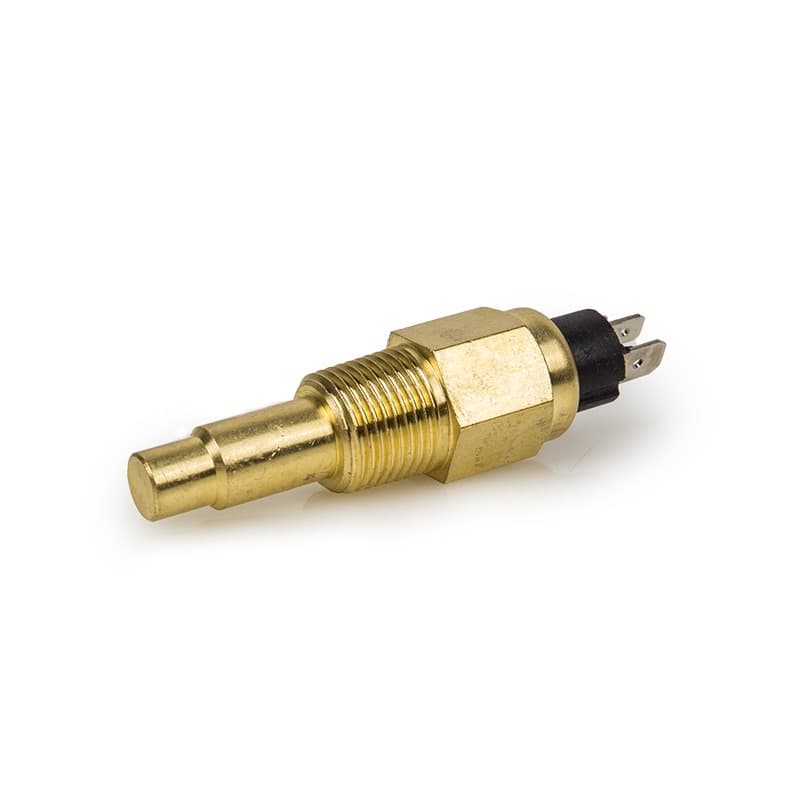

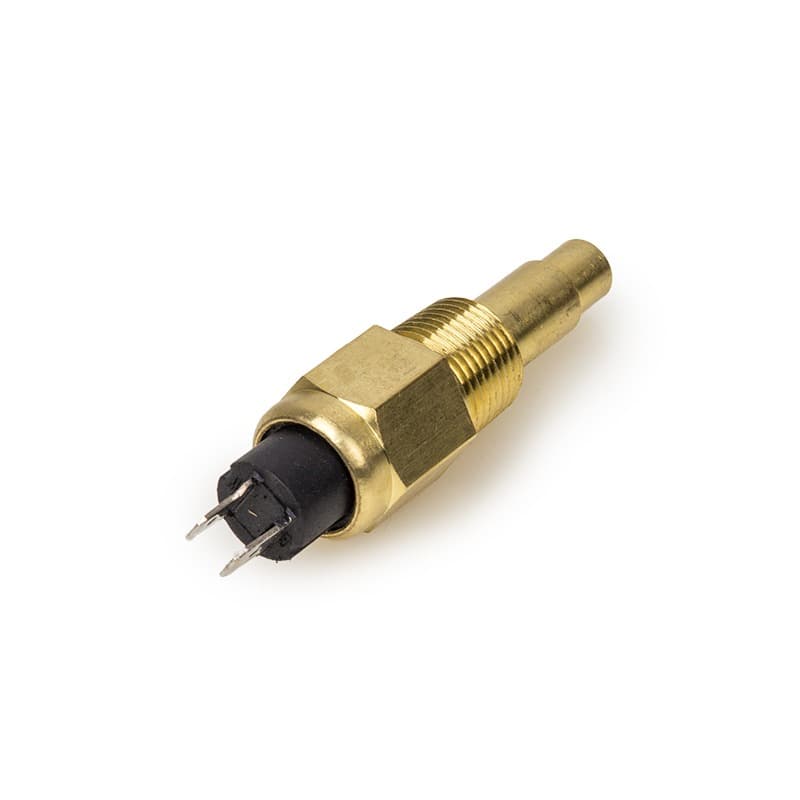

Water Temperature Sensor
About Temperature Sensor
For measuring different media in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is supplied by a separate connection. Temperature senders can be fitted with an additional warning contact in order to indicate when the temperature limit has been reached, as well as carry out continuous measurements.
Product Specification
| Model | 3/8 |
| Design | Thermistor (NTC) |
| Thread | 3/8 – 18 npt |
| Measuring Range |
120°C |
| Voltage Type | 6V~24V |
| Temperature conditioning time | 3 minutes minimum after switching on the power supply |
| Warning contact | 98±3 |
-
Just for replacement only, not the original one.
