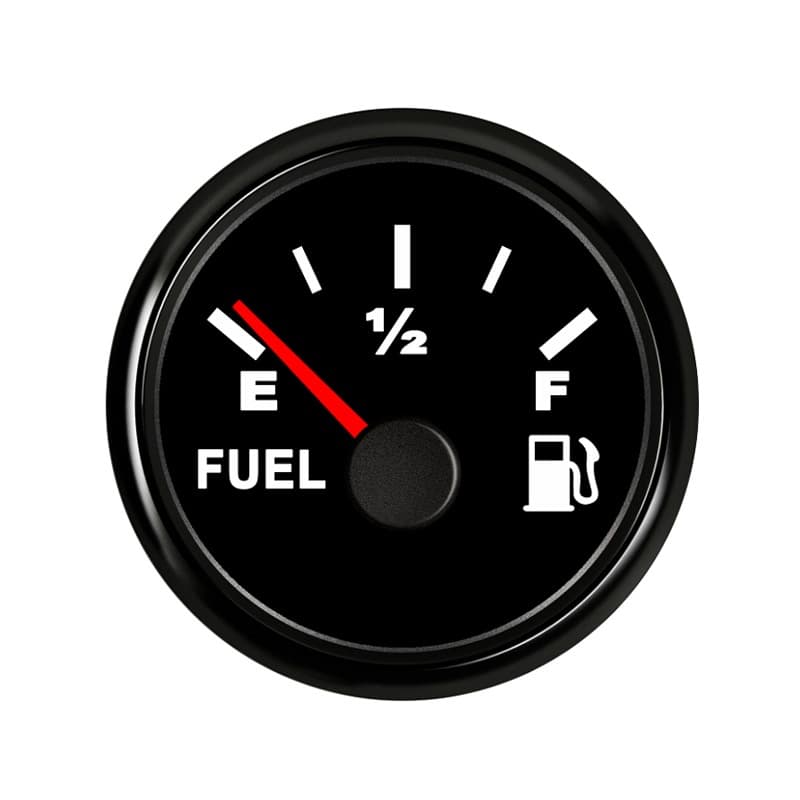

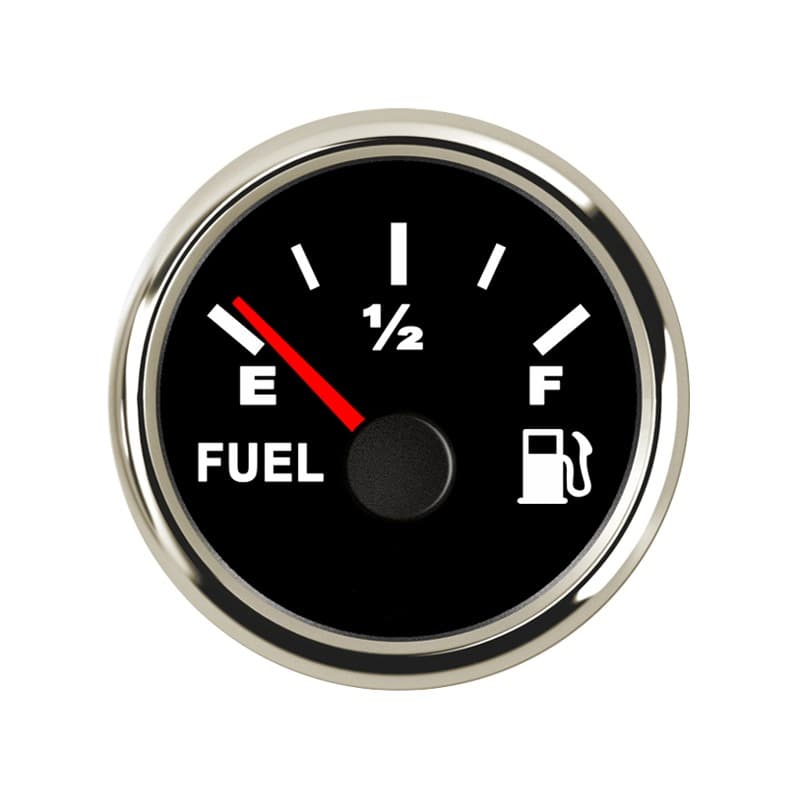

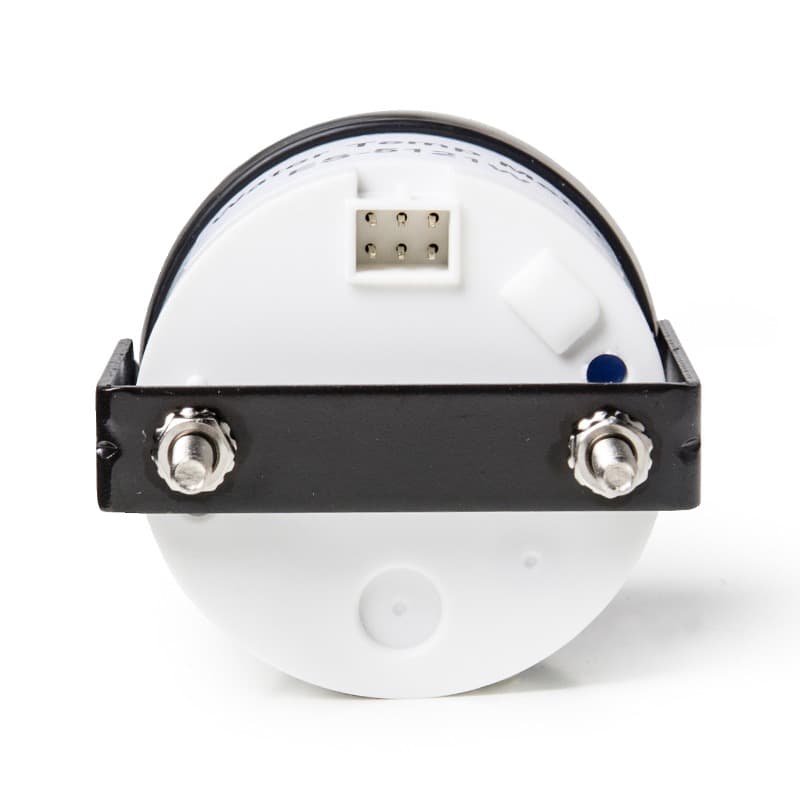

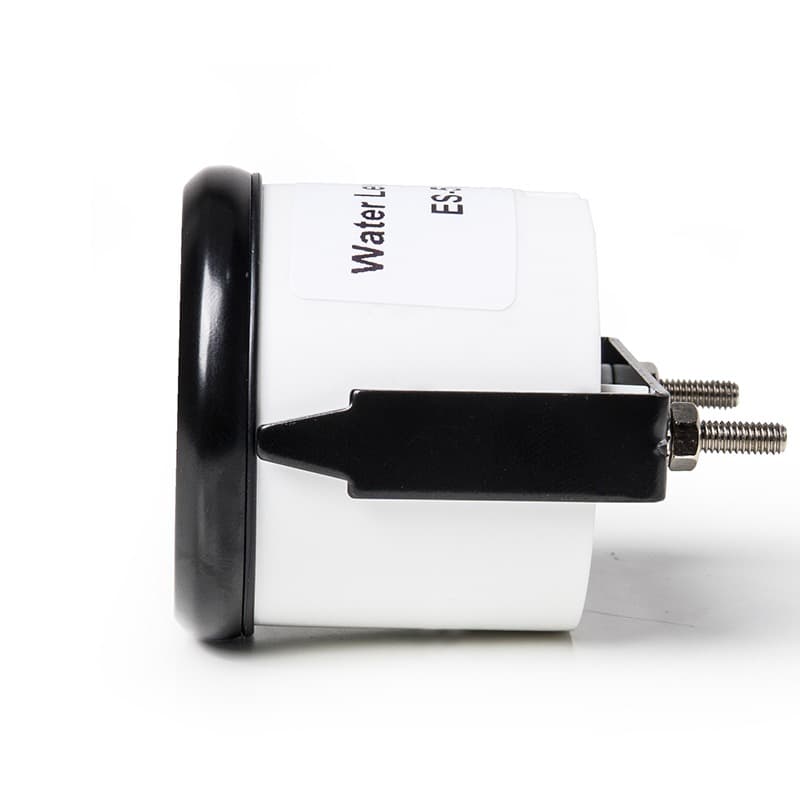

Universal Fuel Level Gauge Fuel Tank Meters Waterproof for Motocycle Yacht
Fuel Gauge
Product Specification
| Model | FG-800 |
| Installation Size | 52MM |
| Induction Range | E-1/2-FULL |
| Voltage Type | 9~32V |
| Service Temperature | -40 - +85℃ |
| Input Signal | 240 – 33Ω |
Features
- Be suitable for all kinds of fuel level sensors with the same signal, and display the liquid level of the oil tank.
- IP67 waterproof and dustproof grade.
- Stepper motors are used for a full range of stepping gauges, a great feature with less power consumption, longer life, higher precision, etc.
- With curved glass (with anti-fogging function)
- With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))
