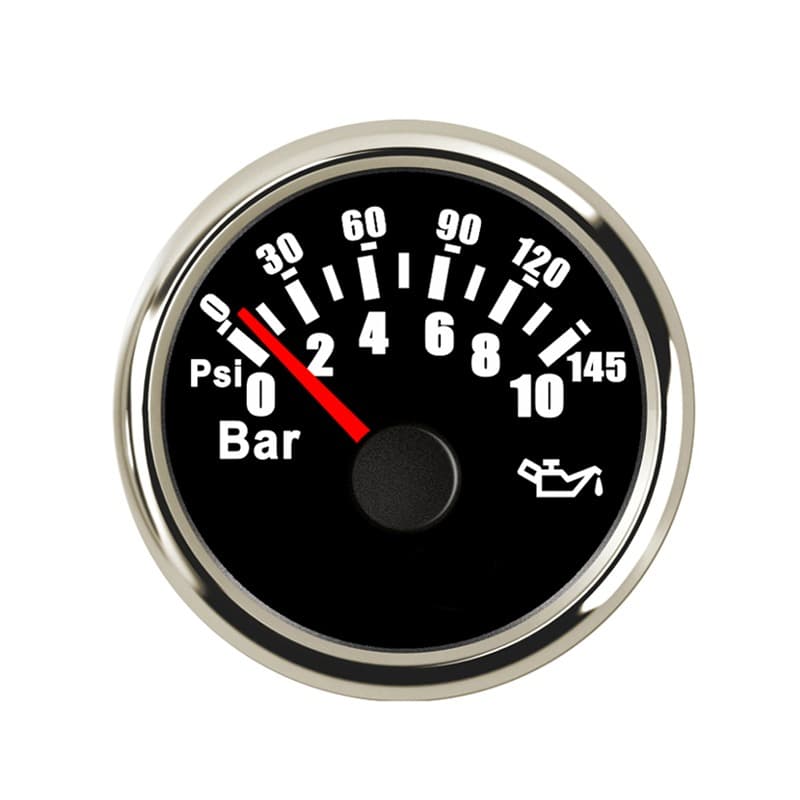

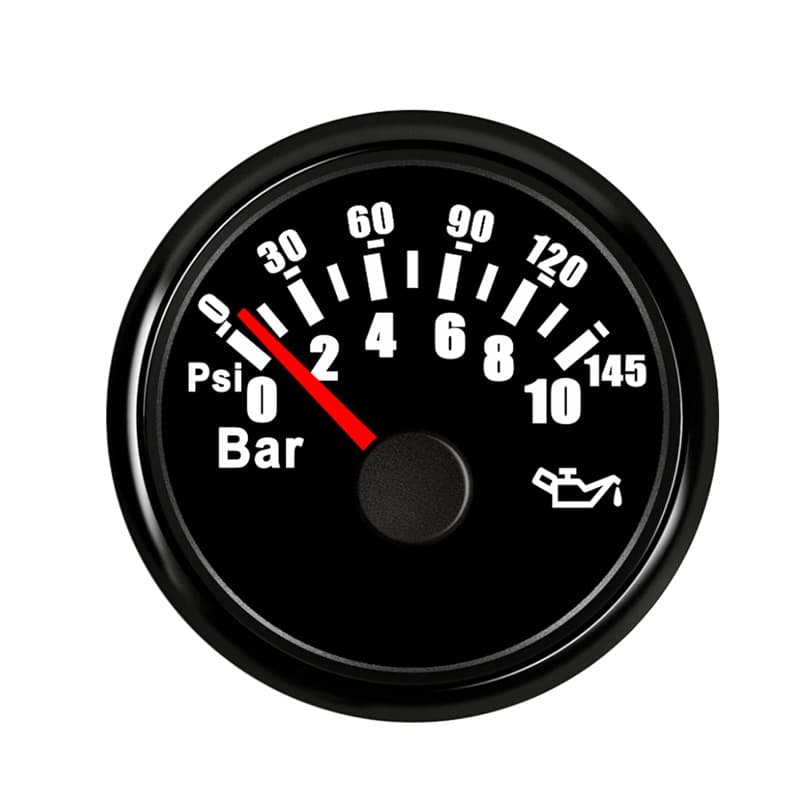

Universal Waterproof Marine Boat Yacht Sewage Oil Pressure Gauge
Oil Pressure Gauge
Product Specification
| Model | OP-010 |
| Installation Size | 52MM |
| Induction Range | 0~10Bar 0~145Psi |
| Voltage Type | 9~32V |
| Service Temperature | -40 - +85℃ |
| Input Signal | 240 – 33Ω |
Features
- Be suitable for all kinds of pressure sensors, and display the value of oil pressure.
- IP67 waterproof and dustproof grade.
- Stepper motors are used for a full range of stepping gauges, a great feature with less power consumption, longer life, higher precision, etc.
- With a curved glass (with anti-fogging function)
- With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min))
