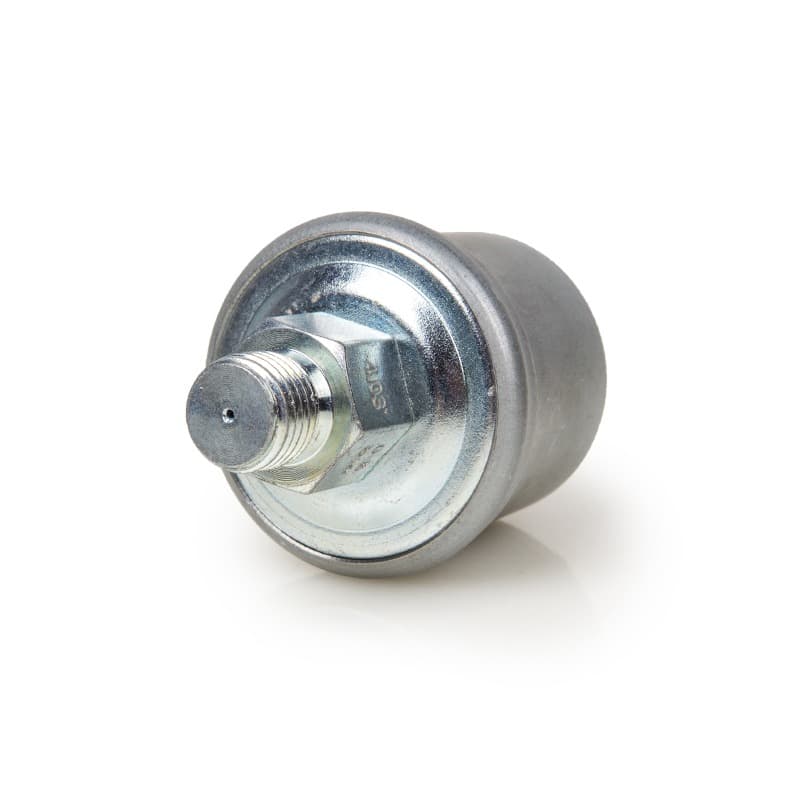

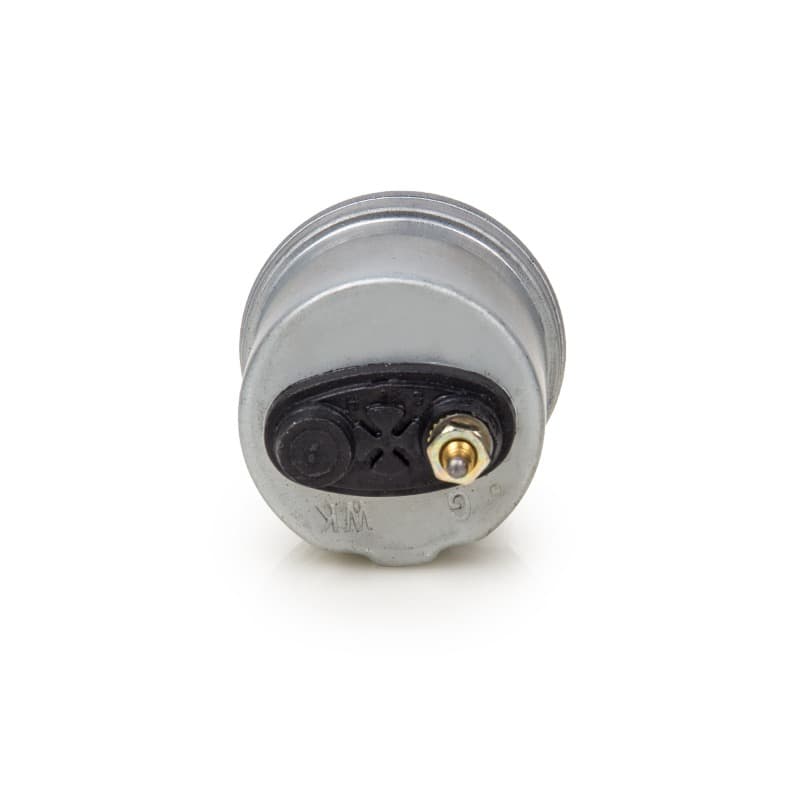

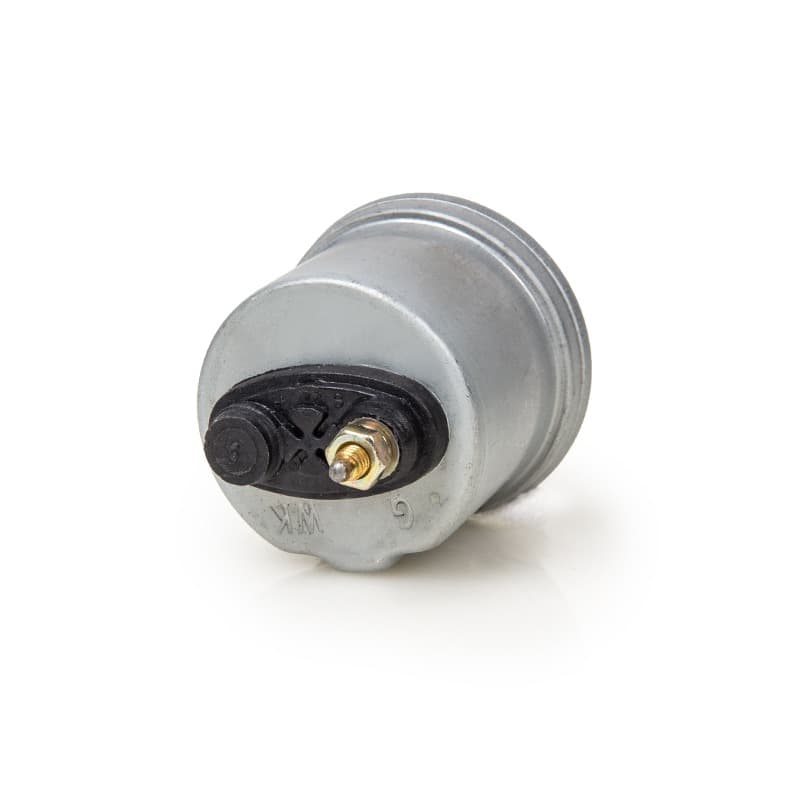

Universal Oil Pressure Sensor M14 for Generator Parts VDO
Oil Pressure Sensor
About Pressure Sensor
For measuring gas or fluid pressure in connection with an electrical display unit. Some senders are earthed. Other senders are not earthed, i.e. earth is supplied by a separate connection. Pressure senders can be fitted with an additional warning contact in order to indicate when the pressure limit has been reached, as well as carried out continuous measurements.
Product Specification
| Model | 360-081-029-065C |
| Thread | M14 x 1.5 |
| Measuring Range |
0-5 bar |
| Voltage Type | 6V~24V |
| Operating temperature | – 25°C~+ 100°C |
| Resistance range | 10 Ω ~184 Ω |
| Warning contact | Without |
-
Just for replacement only, not the original one.
